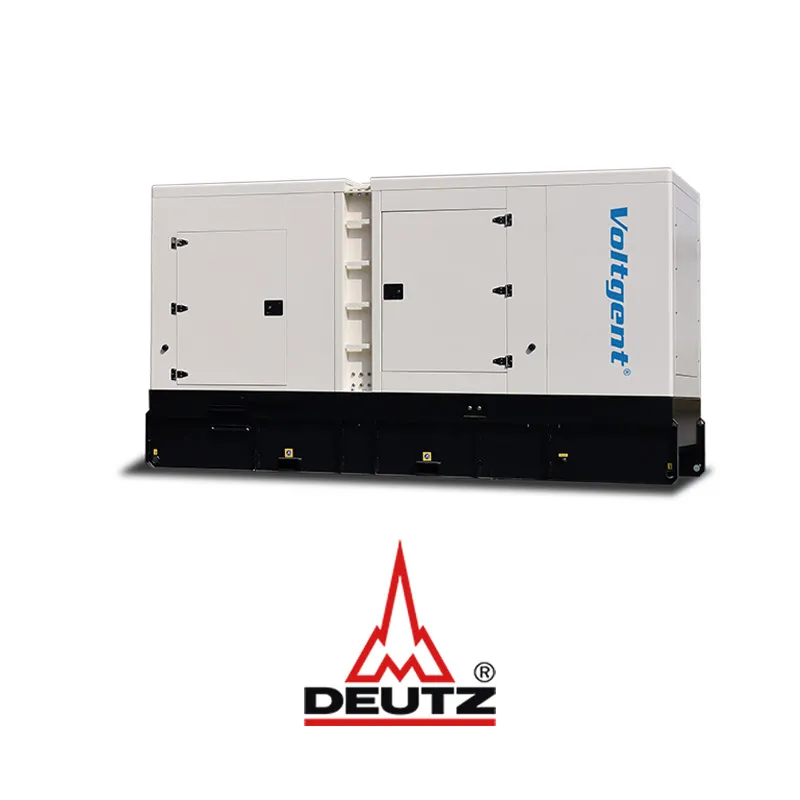

DEUTZ DIESEL GENERATOR SETS

Voltgent DEUTZ-powered diesel generator sets are available in 50 Hz and 60 Hz configurations for prime and standby applications.

Select a model from the tables below, or send us your required power, voltage, frequency, application and operating conditions. Our team will recommend a suitable generator configuration for your project.

Request an DEUTZ Generator Quote

Inquire Now NEXT PRODUCT

DEUTZ GENERATOR QUICK OVERVIEW

Specifications	Details
Power Range	22–550 kVA
Frequency	50 Hz / 60 Hz
Power Rating	Prime / Standby
Generator Type	Open / Silent / Containerized
Voltage	400V / 415V / 440V / 480V / Customized
Control System	Deep Sea / ComAp
Optional Systems	ATS / Synchronizing / Parallel Operation
Applications	Industrial / Data Center / Hospital / Construction / Commercial

PRODUCT LIST

50HZ
60HZ

Genset Model	Standby Power (kVA)	Standby Power (kW)	Prime Power (kVA)	Prime Power (kW)	Engine Brand	Engine Model	Data Sheet
VDE22-5	22	18	20	16	Deutz	BFM3 G3	[EN][RU][ES][PT]
VDE27-5	27	21	25	20	Deutz	BFM3 G4	[EN][RU][ES][PT]
VDE33-5	33	26	30	24	Deutz	BFM3T G1	[EN][RU][ES][PT]
VDE44-5	44	35	40	32	Deutz	BFM3T G2	[EN][RU][ES][PT]
VDE55-5	55	44	50	40	Deutz	BFM3C G1	[EN][RU][ES][PT]
VDE66-5	66	53	60	48	Deutz	BF4M2012	[EN][RU][ES][PT]
VDE88-5	88	70	80	64	Deutz	BF4M2012C G1	[EN][RU][ES][PT]
VDE100-5	100	80	90	72	Deutz	BF4M2012C G2	[EN][RU][ES][PT]
VDE110-5	110	88	100	80	Deutz	BF4M1013EC G1	[EN][RU][ES][PT]
VDE125-5	125	100	113	90	Deutz	BF4M1013EC G2	[EN][RU][ES][PT]
VDE150-5	150	120	138	110	Deutz	BF4M1013FC	[EN][RU][ES][PT]
VDE165-5	165	132	150	120	Deutz	BF6M1013EC G1	[EN][RU][ES][PT]
VDE200-5	200	160	180	144	Deutz	BF6M1013EC G2	[EN][RU][ES][PT]
VDE220-5	220	176	200	160	Deutz	BF6M1013FC G3	[EN][RU][ES][PT]
VDE275-5	275	220	250	200	Deutz	TCD8.0	[EN][RU][ES][PT]
VDE330-5	330	264	300	240	Deutz	TCD8.7	[EN][RU][ES][PT]
VDE350-5	350	280	318	255	Deutz	TCD12.1 G1	[EN][RU][ES][PT]
VDE400-5	400	320	375	300	Deutz	TCD12.1 G2	[EN][RU][ES][PT]
VDE500-5	500	400	450	360	Deutz	TCD13.0 G1	[EN][RU][ES][PT]
VDE550-5	550	440	500	400	Deutz	TCD13.0 G2	[EN][RU][ES][PT]

Genset Model	Standby Power (kVA)	Standby Power (kW)	Prime Power (kVA)	Prime Power (kW)	Engine Brand	Engine Model	Data Sheet
VDE28-6	28	22.4	25	20	Deutz	BFM3 G3	[EN][RU][ES][PT]
VDE32-6	32	25	30	24	Deutz	BFM3 G4	[EN][RU][ES][PT]
VDE38-6	38	30.4	35	28	Deutz	BFM3T G1	[EN][RU][ES][PT]
VDE53-6	53	42.4	48	38.4	Deutz	BFM3T G2	[EN][RU][ES][PT]
VDE65-6	65	52	60	48	Deutz	BFM3C G1	[EN][RU][ES][PT]
VDE75-6	75	60	70	56	Deutz	BF4M2012	[EN][RU][ES][PT]
VDE90-6	90	72	82	65.6	Deutz	BF4M2012C G1	[EN][RU][ES][PT]
VDE110-6	110	88	100	80	Deutz	BF4M2012C G2	[EN][RU][ES][PT]
VDE120-6	120	96	112	89.6	Deutz	BF4M1013EC G1	[EN][RU][ES][PT]
VDE140-6	140	112	125	100	Deutz	BF4M1013EC G2	[EN][RU][ES][PT]
VDE150-6	150	120	138	110.4	Deutz	BF4M1013FC	[EN][RU][ES][PT]
VDE180-6	180	144	168	134.4	Deutz	BF6M1013EC G1	[EN][RU][ES][PT]
VDE215-6	215	172	200	160	Deutz	BF6M1013EC G2	[EN][RU][ES][PT]
VDE245-6	245	196	220	176	Deutz	BF6M1013FC G3	[EN][RU][ES][PT]
VDE285-6	285	228	265	212	Deutz	TCD8.0	[EN][RU][ES][PT]
VDE350-6	350	280	320	256	Deutz	TCD8.7	[EN][RU][ES][PT]
VDE413-6	413	330.4	375	300	Deutz	TCD12.1 G1	[EN][RU][ES][PT]
VDE438-6	438	350.4	400	320	Deutz	TCD12.1 G2	[EN][RU][ES][PT]
VDE500-6	500	400	468	374.4	Deutz	TCD13.0 G1	[EN][RU][ES][PT]
VDE550-6	550	440	500	400	Deutz	TCD13.0 G2	[EN][RU][ES][PT]
