Diesel Gensets

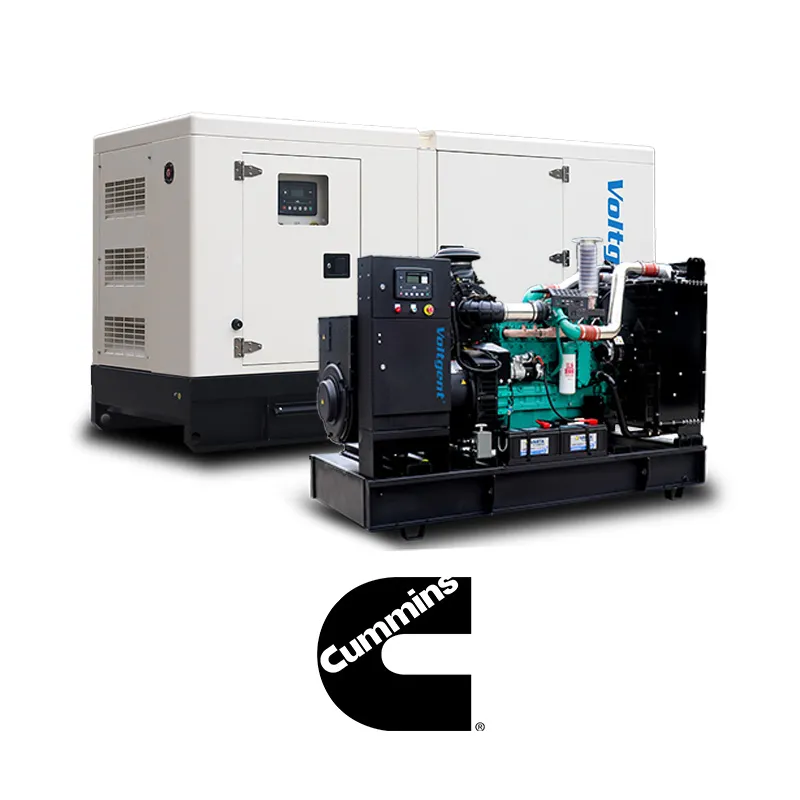

Voltgent Cummins-powered diesel generator sets are available in 50 Hz and 60 Hz for prime and standby applications. Built around proven Cummins KTA19, KTA38, KTA50 and QSK38 engine series, they deliver strong load response, reliable heavy-duty performance and efficient operation for industrial, mining, construction and critical power applications.
Request a Cummins Generator Quote
CUMMINS GENERATOR QUICK OVERVIEW
Specifications | Options |
Power Range | 33–2000 kVA |
Frequency | 50Hz / 60Hz |
Power Rating | Prime / Standby |
Generator Type | Open / Silent / Containerized |
Voltage | 400V / 415V / 440V / 480V / Customized |
Control System | DeepSea / ComAp |
Optional Systems | ATS / Synchronizing / Parallel Operation |
Applications | Industrial / Data Center / Hospital / Construction / Commercial |
PRODUCT LIST
| Genset Model | Standby Power (kVA) | Standby Power (kW) | Prime Power (kVA) | Prime Power (kW) | Engine Brand | Engine Model | Data Sheet |
| VC33-5 | 33 | 26.4 | 30 | 24 | Cummins | 4B3.9-G12 | Download |
| VC44-5 | 44 | 35.2 | 40 | 32 | Cummins | 4BT3.9-G1 | Download |
| VC44-5A | 44 | 35.2 | 40 | 32 | Cummins | 4BT3.9-G2 | Download |
| VC55-5 | 55 | 44 | 50 | 40 | Cummins | 4BTA3.9-G2 | Download |
| VC66-5 | 66 | 52.8 | 60 | 48 | Cummins | 4BTA3.9-G2 | Download |
| VC88-5 | 88 | 70.4 | 80 | 64 | Cummins | 4BTA3.9-G11 | Download |
| VC110-5 | 110 | 88 | 100 | 80 | Cummins | 6BT5.9-G2 | Download |
| VC125-5 | 125 | 100 | 112.5 | 90 | Cummins | 6BTA5.9-G2 | Download |
| VC138-5 | 138 | 110.4 | 125 | 100 | Cummins | 6BTAA5.9-G2 | Download |
| VC150-5 | 150 | 120 | 138 | 110.4 | Cummins | 6BTAA5.9-G2 | Download |
| VC165-5 | 165 | 132 | 150 | 120 | Cummins | 6BTAA5.9-G12 | Download |
| VC200-5 | 200 | 160 | 180 | 144 | Cummins | 6CTA8.3-G2 | Download |
| VC220-5 | 220 | 176 | 200 | 160 | Cummins | 6CTAA8.3-G2 | Download |
| VC275-5 | 275 | 220 | 250 | 200 | Cummins | 6LTAA8.9-G2 | Download |
| VC300-5 | 300 | 240 | 275 | 220 | Cummins | 6LTAA9.5-G3 | Download |
| VC330-5 | 330 | 264 | 300 | 240 | Cummins | 6LTAA9.5-G1 | Download |
| VC358-5 | 358 | 286.4 | 325 | 260 | Cummins | 6LTAA9.5-G1 | Download |
| VC385-5 | 385 | 308 | 350 | 280 | Cummins | NTA855-G4 | Download |
| VC440-5 | 440 | 352 | 400 | 320 | Cummins | QSNT-G3 | Download |
| VC500-5 | 500 | 400 | 450 | 360 | Cummins | QSZ13-G5 | Download |
| VC513-5 | 513 | 410 | 500 | 400 | Cummins | QSZ13-G3 | Download |
| VC650-5 | 650 | 520 | 600 | 480 | Cummins | KTA19G8 | Download |
| VC688-5 | 688 | 550 | 625 | 500 | Cummins | KTAA19-G6A | Download |
| VC825-5 | 825 | 660 | 750 | 600 | Cummins | KTA38G2 | Download |
| VC880-5 | 880 | 704 | 800 | 640 | Cummins | KTA38G2B | Download |
| VC1000-5 | 1000 | 800 | 900 | 720 | Cummins | KTA38G2A | Download |
| VC1100-5 | 1100 | 880 | 1000 | 800 | Cummins | KTA38G5 | Download |
| VC1250-5 | 1250 | 1000 | 1125 | 900 | Cummins | KTA38G9 | Download |
| VC1375-5 | 1375 | 1100 | 1250 | 1000 | Cummins | KTA50G3 | Download |
| VC1675-5 | 1675 | 1340 | 1400 | 1120 | Cummins | KTA50G8 | Download |
| VC1675-5A | 1675 | 1340 | 1500 | 1200 | Cummins | KTA50GS8 | Download |
| VC1760-5 | 1760 | 1408 | 1625 | 1300 | Cummins | QSK38-G32 | Download |
| VC1875-5 | 1875 | 1500 | 1675 | 1340 | Cummins | KTA50-G15A | Download |
| VC2000-5 | 2000 | 1600 | 1875 | 1500 | Cummins | KTA50-G16A | Download |
| Genset Model | Standby Power (kVA) | Standby Power (kW) | Prime Power (kVA) | Prime Power (kW) | Engine Brand | Engine Model | Data Sheet |
| VC35-6 | 35 | 28 | 31 | 25 | Cummins | 4B3.9-G12 | Download |
| VC55-6 | 55 | 44 | 50 | 40 | Cummins | 4BT3.9-G2 | Download |
| VC66-6 | 66 | 53 | 60 | 48 | Cummins | 4BTA3.9-G2 | Download |
| VC75-6 | 75 | 60 | 68 | 54 | Cummins | 4BTA3.9-G2 | Download |
| VC100-6 | 100 | 80 | 90 | 72 | Cummins | 4BTA3.9-G11 | Download |
| VC110-6 | 110 | 88 | 100 | 80 | Cummins | 6BT5.9-G2 | Download |
| VC125-6 | 125 | 100 | 113 | 90 | Cummins | 6BT5.9-G2 | Download |
| VC150-6 | 150 | 120 | 138 | 110 | Cummins | 6BTA5.9-G2 | Download |
| VC165-6 | 165 | 132 | 150 | 120 | Cummins | 6BTAA5.9-G2 | Download |
| VC188-6 | 188 | 150 | 170 | 136 | Cummins | 6BTAA5.9-G12 | Download |
| VC200-6 | 200 | 160 | 180 | 144 | Cummins | 6CTA8.3-G2 | Download |
| VC220-6 | 220 | 176 | 200 | 160 | Cummins | 6CTA8.3-G2 | Download |
| VC250-6 | 250 | 200 | 225 | 180 | Cummins | 6CTAA8.3-G2 | Download |
| VC275-6 | 275 | 220 | 250 | 200 | Cummins | 6CTAA8.3-G9 | Download |
| VC300-6 | 300 | 240 | 275 | 220 | Cummins | 6LTAA8.9-G2 | Download |
| VC344-6 | 344 | 275 | 313 | 250 | Cummins | 6LTAA9.5-G1 | Download |
| VC350-6 | 350 | 280 | 313 | 250 | Cummins | NTA855-G1 | Download |
| VC388-6 | 388 | 310 | 350 | 280 | Cummins | NTA855-G1B | Download |
| VC413-6 | 413 | 330 | 375 | 300 | Cummins | QSM11-G2 | Download |
| VC440-6E | 440 | 350 | 400 | 320 | Cummins | QSM11-G4 | Download |
| VC440-6 | 440 | 350 | 400 | 320 | Cummins | NTA855-G3 | Download |
| VC500-6 | 500 | 400 | 450 | 360 | Cummins | KTA19-G2 | Download |
| VC523-6 | 523 | 418 | 475 | 380 | Cummins | QSZ13-G5 | Download |
| VC550-6 | 550 | 440 | 500 | 400 | Cummins | KTA19-G3 | Download |
| VC600-6 | 600 | 485 | 550 | 440 | Cummins | QSZ13-G11 | Download |
| VC625-6 | 625 | 500 | 563 | 450 | Cummins | KTA19-G3A | Download |
| VC688-6 | 688 | 550 | 625 | 500 | Cummins | KTAA19-G5 | Download |
| VC750-6 | 750 | 600 | 683 | 546 | Cummins | KTAA19-G6A | Download |
| VC850-6 | 850 | 680 | 775 | 620 | Cummins | KT38-G | Download |
| VC963-6 | 963 | 770 | 875 | 700 | Cummins | KTA38-G1 | Download |
| VC1000-6 | 1000 | 800 | 910 | 725 | Cummins | KTA38-G2 | Download |
| VC1038-6 | 1038 | 830 | 938 | 750 | Cummins | KTA38-G2B | Download |
| VC1100-6 | 1100 | 880 | 1000 | 800 | Cummins | KTA38-G2A | Download |
| VC1250-6 | 1250 | 1000 | 1138 | 910 | Cummins | KTA38-G4 | Download |
| VC1375-6 | 1375 | 1100 | 1250 | 1000 | Cummins | KTA38-G9 | Download |
| VC1513-6 | 1513 | 1260 | 1375 | 1100 | Cummins | KTA50-G3 | Download |
| VC1875-6 | 1875 | 1500 | 1563 | 1260 | Cummins | KTA50-G9 | Download |
VIDEOS
15kW Gas Generator Powered by Voltgent
165kVA Canopy set, Powered by Perkins

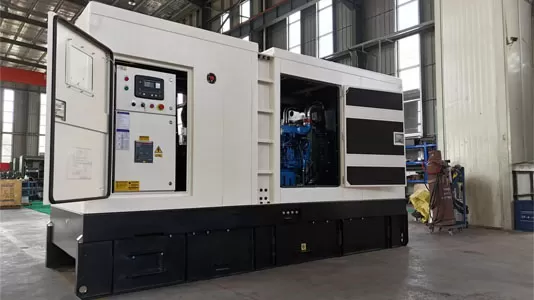

Stage III Emission 350KVA Baudouin Canopy Set
