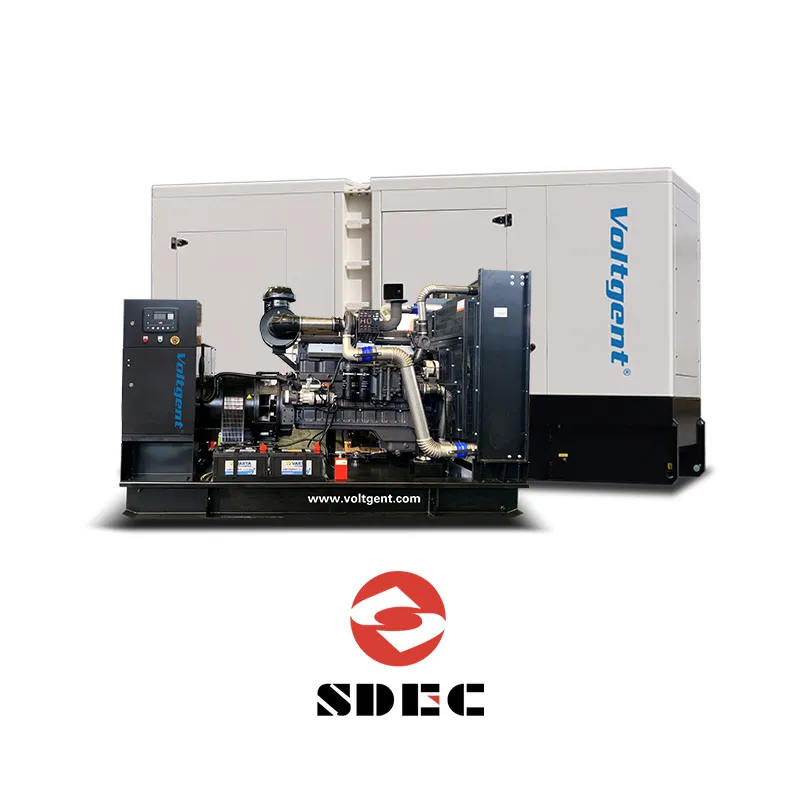

Diesel Gensets
Voltgent SDEC-powered diesel generator sets are available in 50 Hz and 60 Hz configurations for prime and standby applications.
Select a model from the tables below, or send us your required power, voltage, frequency, application and operating conditions. Our team will recommend a suitable generator configuration for your project.
Request an SDEC Generator Quote
SDEC GENERATOR QUICK OVERVIEW
Specifications | Details |
Power Range | 17–2500 kVA |
Frequency | 50 Hz / 60 Hz |
Power Rating | Prime / Standby |
Generator Type | Open / Silent / Containerized |
Voltage | 400V / 415V / 440V / 480V / Customized |
Control System | Deep Sea / ComAp |
Optional Systems | ATS / Synchronizing / Parallel Operation |
Applications | Industrial / Data Center / Hospital / Construction / Commercial |
PRODUCT LIST
| Genset Model | Standby Power (kVA) | Standby Power (kW) | Prime Power (kVA) | Prime Power (kW) | Engine Brand | Engine Model | Data Sheet |
| VSC16.5-5 | 16.5 | 13.2 | 15 | 12 | SDEC | 4Z2.3-G11 | [EN][RU][ES][PT] |
| VSC16.5-5E | 16.5 | 13.2 | 15 | 12 | SDEC | 4Z2.3-G21 | [EN][RU][ES][PT] |
| VSC22-5 | 22 | 17.6 | 20 | 16 | SDEC | 4Z2.7-G11 | [EN][RU][ES][PT] |
| VSC22-5E | 22 | 17.6 | 20 | 16 | SDEC | 4Z2.7-G21 | [EN][RU][ES][PT] |
| VSC27.5-5 | 27.5 | 22 | 25 | 20 | SDEC | 4Z3.0-G11 | [EN][RU][ES][PT] |
| VSC27.5-5E | 27.5 | 22 | 25 | 20 | SDEC | 4Z3.0-G21 | [EN][RU][ES][PT] |
| VSC33-5 | 33 | 26.4 | 30 | 24 | SDEC | 4Z3.2-G11 | [EN][RU][ES][PT] |
| VSC33-5E | 33 | 26.4 | 30 | 24 | SDEC | 4Z3.2-G21 | [EN][RU][ES][PT] |
| VSC44-5 | 44 | 35.2 | 40 | 32 | SDEC | 4ZT3.2-G11 | [EN][RU][ES][PT] |
| VSC44-5E | 44 | 35.2 | 40 | 32 | SDEC | 4ZT3.2-G21 | [EN][RU][ES][PT] |
| VSC55-5 | 55 | 44 | 50 | 40 | SDEC | 4ZT3.5-G21 | [EN][RU][ES][PT] |
| VSC66-5 | 66 | 52.8 | 60 | 48 | SDEC | 4ZT4.1-G21 | [EN][RU][ES][PT] |
| VSC75-5 | 75 | 60 | 68 | 55 | SDEC | 4ZTAA4.1-G21 | [EN][RU][ES][PT] |
| VSC83-5 | 83 | 66 | 75 | 60 | SDEC | 4ZTAA4.1-G31 | [EN][RU][ES][PT] |
| VSC88-5 | 88 | 70 | 80 | 64 | SDEC | 4HT4.3-G23 | [EN][RU][ES][PT] |
| VSC110-5 | 110 | 88 | 100 | 80 | SDEC | 4HTAA4.3-G21 | [EN][RU][ES][PT] |
| VSC125-5 | 125 | 100 | 112.5 | 90 | SDEC | 4HTAA4.3-G23 | [EN][RU][ES][PT] |
| VSC138-5 | 138 | 110 | 125 | 100 | SDEC | 4HTAA4.3-G22 | [EN][RU][ES][PT] |
| VSC150-5 | 150 | 120 | 137.5 | 110 | SDEC | 6HTAA6.5-G21 | [EN][RU][ES][PT] |
| VSC165-5 | 165 | 132 | 150 | 120 | SDEC | 6HTAA6.5-G22 | [EN][RU][ES][PT] |
| VSC206-5 | 206 | 164.8 | 187.5 | 150 | SDEC | 6HTAA6.5-G23 | [EN][RU][ES][PT] |
| VSC220-5 | 220 | 176 | 200 | 160 | SDEC | 6DTAA8.9-G21 | [EN][RU][ES][PT] |
| VSC250-5 | 250 | 200 | 225 | 180 | SDEC | 6DTAA8.9-G24 | [EN][RU][ES][PT] |
| VSC275-5 | 275 | 220 | 250 | 200 | SDEC | 6DTAA8.9-G23 | [EN][RU][ES][PT] |
| VSC313-5 | 313 | 250 | 275 | 220 | SDEC | SC10E380D2 | [EN][RU][ES][PT] |
| VSC350-5 | 350 | 280 | 312.5 | 250 | SDEC | 6ETAA11.8-G22 | [EN][RU][ES][PT] |
| VSC375-5 | 375 | 300 | 350 | 280 | SDEC | 6ETAA11.8-G21 | [EN][RU][ES][PT] |
| VSC413-5 | 413 | 330 | 375 | 300 | SDEC | 6ETAA12.8-G22 | [EN][RU][ES][PT] |
| VSC450-5 | 450 | 360 | 400 | 320 | SDEC | 6ETAA12.8-G21 | [EN][RU][ES][PT] |
| VSC500-5 | 500 | 400 | 450 | 360 | SDEC | 6ETAA12.8-G31 | [EN][RU][ES][PT] |
| VSC550-5 | 550 | 440 | 500 | 400 | SDEC | 6ETAA12.8-G310 | [EN][RU][ES][PT] |
| VSC625-5 | 625 | 500 | 562.5 | 450 | SDEC | SC27G755D2 | [EN][RU][ES][PT] |
| VSC688-5 | 688 | 550 | 625 | 500 | SDEC | SC27G830D2 | [EN][RU][ES][PT] |
| VSC750-5 | 750 | 600 | 688 | 550 | SDEC | SC27G900D2 | [EN][RU][ES][PT] |
| VSC825-5 | 825 | 660 | 750 | 600 | SDEC | SC25K990D2 | [EN][RU][ES][PT] |
| VSC900-5 | 900 | 720 | 825 | 660 | SDEC | 6KTAA25-G31 | [EN][RU][ES][PT] |
| VSC1000-5 | 1000 | 800 | 900 | 720 | SDEC | 6KTAA25-G320 | [EN][RU][ES][PT] |
| VSC1125-5 | 1125 | 900 | 1000 | 800 | SDEC | 6KTAA25-G321 | [EN][RU][ES][PT] |
| VSC1250-5 | 1250 | 1000 | 1100 | 900 | SDEC | 6WTAA35-G310 | [EN][RU][ES][PT] |
| VSC1375-5 | 1375 | 1100 | 1250 | 1000 | SDEC | 6WTAA35-G311 | [EN][RU][ES][PT] |
| VSC1500-5 | 1500 | 1200 | 1375 | 1100 | SDEC | 12KTA58-G36 | [EN][RU][ES][PT] |
| VSC1688-5 | 1688 | 1350 | 1560 | 1250 | SDEC | 12KTA58-G35 | [EN][RU][ES][PT] |
| VSC1875-5 | 1875 | 1500 | 1688 | 1350 | SDEC | 12KTA58-G34 | [EN][RU][ES][PT] |
| VSC2000-5 | 2000 | 1600 | 1875 | 1500 | SDEC | 12KTA58-G33 | [EN][RU][ES][PT] |
| VSC2250-5 | 2250 | 1800 | 2000 | 1600 | SDEC | 12KTA58-G32 | [EN][RU][ES][PT] |
| VSC2500-5 | 2500 | 2000 | 2250 | 1800 | SDEC | 12KTA58-G31 | [EN][RU][ES][PT] |
| Genset Model | Standby Power (kVA) | Standby Power (kW) | Prime Power (kVA) | Prime Power (kW) | Engine Brand | Engine Model | Data Sheet |
| VSC22-6 | 22 | 17.6 | 20 | 16 | SDEC | 4Z2.3-G12 | [EN][RU][ES][PT] |
| VSC22-6E | 22 | 17.6 | 20 | 16 | SDEC | 4Z2.3-G21 | [EN][RU][ES][PT] |
| VSC28-6 | 27.5 | 22 | 25 | 20 | SDEC | 4Z2.7-G12 | [EN][RU][ES][PT] |
| VSC28-6E | 27.5 | 22 | 25 | 20 | SDEC | 4Z2.7-G21 | [EN][RU][ES][PT] |
| VSC33-6 | 33 | 26.4 | 30 | 24 | SDEC | 4Z3.0-G12 | [EN][RU][ES][PT] |
| VSC33-6E | 33 | 26.4 | 30 | 24 | SDEC | 4Z3.0-G21 | [EN][RU][ES][PT] |
| VSC41-6 | 41.25 | 33 | 37.5 | 30 | SDEC | 4Z3.2-G12 | [EN][RU][ES][PT] |
| VSC41-6E | 41.25 | 33 | 37.5 | 30 | SDEC | 4Z3.2-G21 | [EN][RU][ES][PT] |
| VSC47-6 | 46.75 | 37.4 | 42.5 | 34 | SDEC | 4ZT3.2-G12 | [EN][RU][ES][PT] |
| VSC47-6E | 46.75 | 37.4 | 42.5 | 34 | SDEC | 4ZT3.2-G21 | [EN][RU][ES][PT] |
| VSC66-6 | 66 | 52.8 | 60 | 48 | SDEC | 4ZT3.5-G21 | [EN][RU][ES][PT] |
| VSC77-6 | 77 | 61.6 | 70 | 56 | SDEC | 4ZT4.1-G21 | [EN][RU][ES][PT] |
| VSC85-6 | 85.25 | 68.2 | 77.5 | 62 | SDEC | 4ZTAA4.1-G21 | [EN][RU][ES][PT] |
| VSC88-6 | 88 | 70.4 | 80 | 64 | SDEC | 4ZTAA4.1-G21 | [EN][RU][ES][PT] |
| VSC100-6 | 100 | 80 | 90 | 72 | SDEC | 4HT4.3-G23 | [EN][RU][ES][PT] |
| VSC125-6 | 125 | 100 | 112.5 | 90 | SDEC | 4HTAA4.3-G21 | [EN][RU][ES][PT] |
| VSC138-6 | 137.5 | 110 | 125 | 100 | SDEC | 4HTAA4.3-G23 | [EN][RU][ES][PT] |
| VSC165-6 | 165 | 132 | 150 | 120 | SDEC | 6HTAA6.5-G21 | [EN][RU][ES][PT] |
| VSC176-6 | 176 | 140.8 | 160 | 128 | SDEC | 6HTAA6.5-G22 | [EN][RU][ES][PT] |
| VSC220-6 | 220 | 176 | 200 | 160 | SDEC | 6HTAA6.5-G23 | [EN][RU][ES][PT] |
| VSC250-6 | 250.25 | 200.2 | 227.5 | 182 | SDEC | 6DTAA8.9-G21 | [EN][RU][ES][PT] |
| VSC275-6 | 275 | 220 | 250 | 200 | SDEC | 6DTAA8.9-G24 | [EN][RU][ES][PT] |
| VSC303-6 | 302.5 | 242 | 275 | 220 | SDEC | 6DTAA8.9-G23 | [EN][RU][ES][PT] |
| VSC385-6 | 385 | 308 | 350 | 280 | SDEC | 6ETAA11.8-G22 | [EN][RU][ES][PT] |
| VSC413-6 | 412.5 | 330 | 375 | 300 | SDEC | 6ETAA12.8-G22 | [EN][RU][ES][PT] |
| VSC440-6 | 440 | 352 | 400 | 320 | SDEC | 6ETAA12.8-G21 | [EN][RU][ES][PT] |
| VSC500-6 | 500 | 400 | 450 | 360 | SDEC | 6ETAA12.8-G32 | [EN][RU][ES][PT] |
| VSC550-6 | 550 | 440 | 500 | 400 | SDEC | 6ETAA12.8-G310.1 | [EN][RU][ES][PT] |
| VSC625-6 | 625 | 500 | 562.5 | 450 | SDEC | 6KTAA25-G311 | [EN][RU][ES][PT] |
| VSC688-6 | 687.5 | 550 | 625 | 500 | SDEC | 6KTAA25-G310 | [EN][RU][ES][PT] |
| VSC770-6 | 770 | 616 | 700 | 560 | SDEC | 6KTAA25-G39 | [EN][RU][ES][PT] |
| VSC825-6 | 825 | 660 | 750 | 600 | SDEC | 6KTAA25-G32.1 | [EN][RU][ES][PT] |
| VSC900-6 | 900 | 720 | 825 | 660 | SDEC | 6KTAA25-G31.1 | [EN][RU][ES][PT] |
| VSC1000-6 | 1000 | 800 | 900 | 720 | SDEC | 6KTAA25-G320.1 | [EN][RU][ES][PT] |
| VSC1100-6 | 1100 | 880 | 1000 | 800 | SDEC | 6KTAA25-G321.1 | [EN][RU][ES][PT] |
