How EGR, DOC, DPF and SCR Work Together to Achieve Stage V Compliance in Diesel Engines

Introduction

Under Stage V emission regulations, diesel engines must deliver both strong performance and ultra-low emissions. Meeting these requirements is no longer possible with a single emission control technology. Instead, modern diesel engines rely on a systematic combination of multiple emission reduction technologies.

Carbon monoxide (CO), hydrocarbons (HC), nitrogen oxides (NOx), and particulate matter (PM and PN) are the main pollutants that must be controlled simultaneously.

Key aftertreatment technologies such as EGR, DOC, DPF, and SCR work together to create a highly efficient emission control network. Each technology plays a specific role, forming a coordinated solution for Stage V compliance.

Emission Control Technologies: “Each Performs Its Own Role”

In Stage V emission architecture, EGR acts as a source-level control, DOC and DPF form the particulate treatment core, while SCR is responsible for deep NOx reduction.

1. EGR: Controlling NOx From the Source

NOx formation is closely related to high combustion temperature.

Exhaust Gas Recirculation (EGR) reduces NOx by redirecting a portion of exhaust gas back into the intake system.

How EGR Works

1.  A controlled portion of exhaust gas is routed through the EGR valve

2.  The exhaust gas mixes with fresh intake air

3.  Combustion temperature decreases due to reduced oxygen concentration

Since NOx formation is highly temperature-dependent, lowering peak combustion temperature effectively suppresses NOx generation at the source.

Advantages of EGR

● Works effectively under low and medium load conditions

● Does not rely on urea injection systems

● Relatively simple structural design

Limitations

● NOx reduction capacity is limited under high-load operation

● Excessive EGR rate may affect combustion efficiency and engine power output

Therefore, EGR is considered a preliminary NOx reduction technology rather than a final solution.

2. DOC: The First Gate of the Exhaust Aftertreatment System

The Diesel Oxidation Catalyst (DOC) is usually the first component in the exhaust aftertreatment chain.

Main Functions of DOC

● Oxidizes carbon monoxide (CO) into carbon dioxide (CO₂)

● Converts hydrocarbons (HC) into water and CO₂

● Reduces soluble organic fraction in particulate emissions

● Increases exhaust temperature to support DPF regeneration and SCR reaction

DOC plays an essential infrastructure role by creating favorable conditions for downstream systems.

Without DOC preconditioning, the efficiency of the entire aftertreatment chain may decrease.

3. DPF: The Core Technology for Stage V Particulate Control

Stage V regulations not only limit PM mass but also strictly restrict particle number (PN) emissions. This requirement makes DPF systems almost indispensable.

Working Principle of DPF

DPF captures particulate matter through a porous ceramic filter structure.

When the filter loading reaches a certain threshold, regeneration occurs under high-temperature conditions.

During regeneration:

● Trapped carbon particles are oxidized

● The filter is restored to low-pressure-drop operating status

DPF vs POC

DPF is the backbone technology for modern high-standard emission control.

4. SCR: The Most Powerful NOx Reduction Technology

Selective Catalytic Reduction (SCR) is currently the most efficient method for NOx control in diesel engines.

How SCR Works

● Urea solution is injected into the exhaust stream

● Urea decomposes into ammonia (NH₃)

● NOx reacts with NH₃ to form nitrogen (N₂) and water (H₂O)

Why SCR is Critical

● NOx conversion efficiency can reach 50–90% or higher

● Minimal impact on engine combustion performance

● Suitable for high-load and continuous-duty operation

In Stage V emission systems, SCR is the primary technology for achieving deep NOx reduction.

5. ASC: The Safety Protection Layer of the SCR System

SCR systems are not perfectly efficient under all operating conditions.

Residual ammonia may escape if reaction conditions are not optimal.

The Ammonia Slip Catalyst (ASC) serves as a protective layer by:

● Oxidizing excess ammonia

● Preventing secondary pollution

● Improving system operational safety

ASC can be considered a fail-safe mechanism for SCR systems.

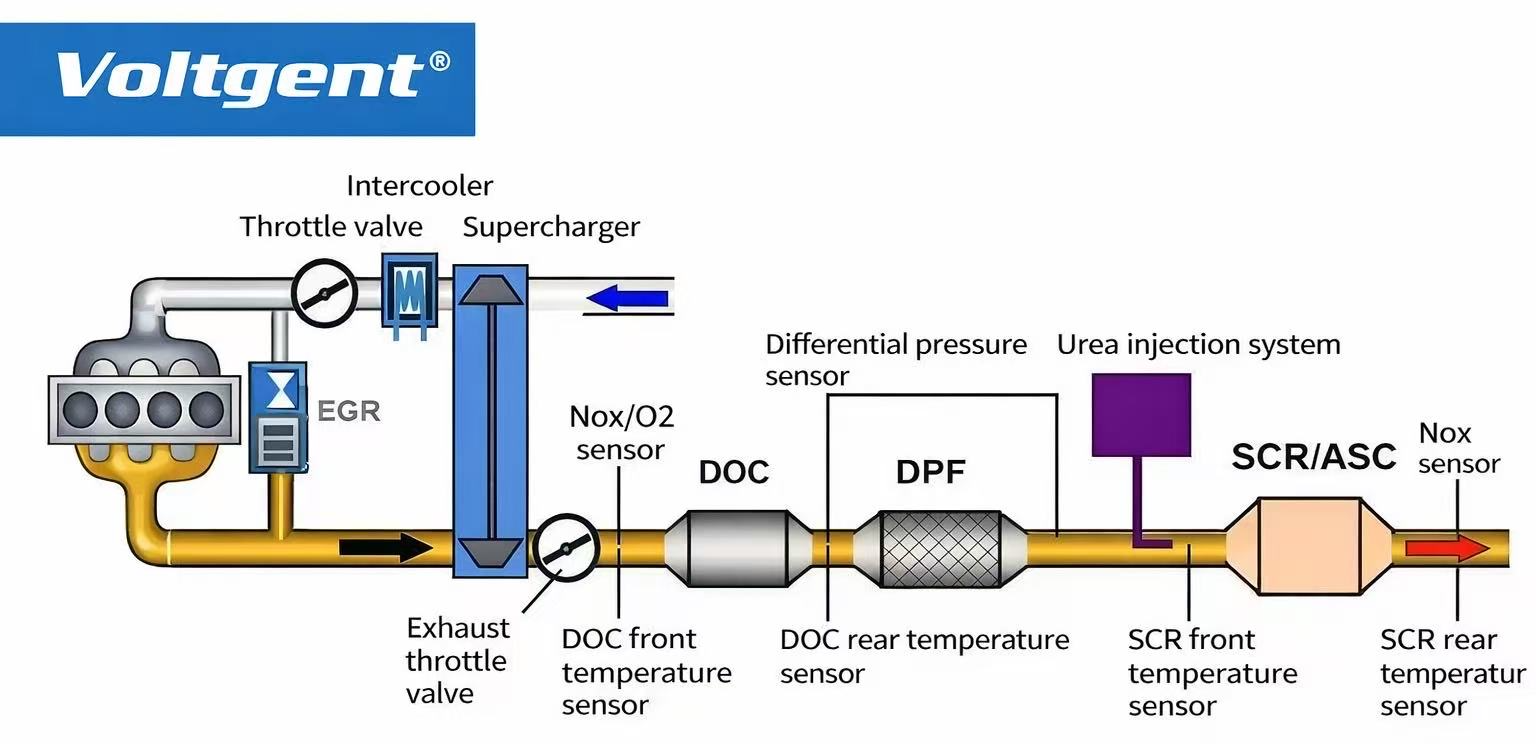

Typical Stage V Aftertreatment Configurations

System configuration depends on engine power level, load profile, and application scenario.

System Integration Matters More Than Single Technology

Stage V compliance is not achieved by installing isolated emission components.

The real challenge lies in the integration of engine combustion design, cooling system, and aftertreatment architecture.

A well-designed diesel generator set must balance:

● Emission compliance

● Fuel efficiency

● Power performance

● Maintenance convenience

● Long-term operational reliability

Poor system matching may lead to high backpressure, regeneration difficulties, or catalyst efficiency degradation.

Stage V Diesel Generator Solutions

For manufacturers of diesel generator sets, emission compliance requires comprehensive engineering design.

When developing Stage V generator sets, several factors must be considered:

● Selection of suitable aftertreatment combinations for different power segments

● Optimization of exhaust temperature management

● Precise urea injection control

● Durable system structure for industrial operation

● Easy maintenance and service accessibility

The goal is not only to meet Stage V emission limits but also to ensure stable operation under real working conditions.

Conclusion

Under Stage V emission standards, technologies such as EGR, DOC, DPF, and SCR have become essential components of modern diesel engine systems.

● EGR reduces NOx at the combustion source

● DOC prepares exhaust gas for further treatment

● DPF removes particulate matter and particle number emissions

● SCR provides high-efficiency NOx conversion

● ASC ensures operational safety by preventing ammonia slip

The real performance of a Stage V diesel generator depends on the integration and matching of the entire emission control system rather than any single technology.
