Low Voltage vs High Voltage Diesel Generators: Understanding the Future of Industrial Power Generation
As industries continue to expand and energy infrastructure becomes more complex, diesel generators are being used in increasingly demanding applications. From commercial buildings and hospitals to mining operations, industrial plants, data centers, and renewable energy projects, generator systems must now meet higher standards of reliability, efficiency, and scalability.
Today, both low voltage and high voltage diesel generators play important roles in the global power generation market, serving different operational requirements and project scales.
What Is a Low Voltage Diesel Generator?
Low voltage diesel generators are the most widely used generator systems worldwide.
Typical output voltages include:
● 400V
● 415V
● 440V
● 480V
These generators are commonly installed in:
● Commercial buildings
● Hotels
● Hospitals
● Manufacturing plants
● Data centers
● Rental power fleets
● Construction sites
● Temporary power projects
The main advantage of low voltage systems is their simplicity.
Most low voltage generators use a three-phase four-wire configuration (L1, L2, L3, Neutral), allowing them to supply both three-phase equipment and single-phase loads such as lighting systems, office equipment, and control circuits.
For most standard standby and prime power applications, low voltage generators provide a cost-effective and practical solution.

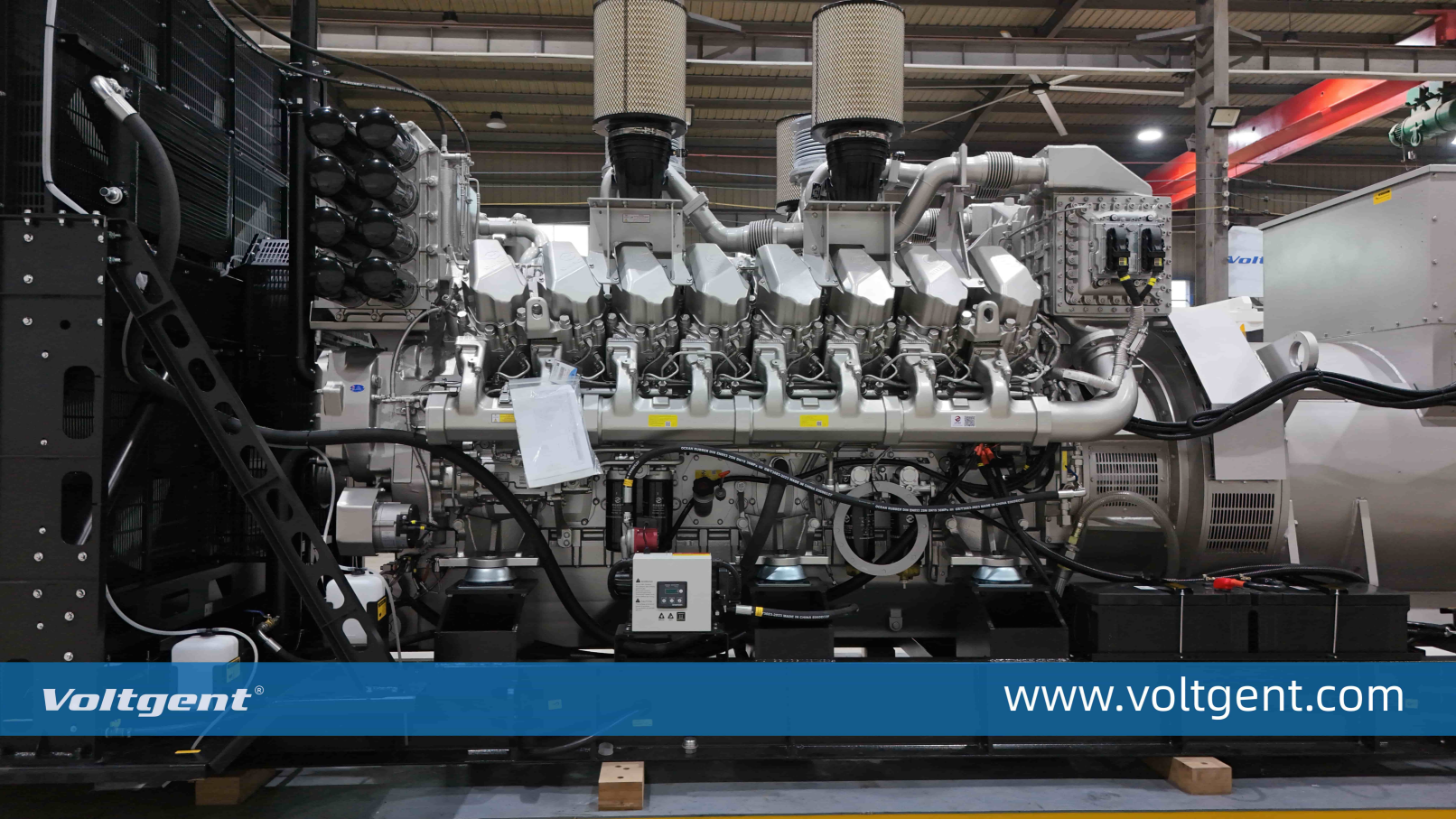

What Is a High Voltage Diesel Generator?
As project capacities continue to increase, high voltage diesel generators are becoming more common in industrial power systems.
Typical output voltages include:
● 6.3kV
● 10.5kV
● 11kV
● 13.8kV
● 15kV
High voltage generator sets are widely used in:
● Mining operations
● Cement plants
● Oil and gas facilities
● Hydropower stations
● Industrial parks
● Utility backup power systems
● Long-distance power transmission projects
Unlike low voltage systems, high voltage generators are specifically designed for large-scale power applications where high capacity and transmission efficiency are critical.
Low Voltage vs High Voltage Generators: Key Differences
Feature | Low Voltage Generator | High Voltage Generator |
Voltage Range | 400V–480V | 6.3kV–15kV |
Installation Complexity | Lower | Higher |
Cable Size | Larger | Smaller |
Transmission Distance | Short to Medium | Long Distance |
Power Capacity | Small to Large | Large to Utility Scale |
Initial Investment | Lower | Higher |
System Efficiency | Good | Excellent |
Engineering Requirements | Standard | Advanced |
The most significant advantage of a high voltage diesel generator is the reduction of current at the same power output level.
This results in:
● Lower transmission losses
● Smaller cable sizes
● Reduced installation costs for long cable runs
● Improved overall system efficiency
For large industrial projects, these advantages can significantly reduce total project costs over the lifetime of the installation.
High Voltage Systems Require More Than Higher Voltage
Many customers assume that a high voltage generator is simply a standard generator operating at a higher voltage level.
In reality, high voltage power systems require additional equipment and engineering considerations, including:
● Vacuum Circuit Breakers (VCB)
● Current Transformers (CT) and Potential Transformers (PT)
● Protection Relays
● Neutral Grounding Resistors (NGR)
● Medium / High Voltage Switchgear
● High Voltage Cable Terminations
● Grounding and Protection Systems
In high voltage installations, the neutral point is primarily used for grounding and protection purposes rather than directly supplying single-phase loads.
As a result, system design, installation, commissioning, and operational safety require more specialized engineering expertise compared to conventional low voltage systems.
High Voltage Diesel Generators in Hybrid Power Systems
The growth of renewable energy is creating new opportunities for high voltage generator applications.
Today, diesel generators are increasingly integrated with:
● Solar photovoltaic systems
● Battery energy storage systems (BESS)
● Hydropower plants
● Hybrid microgrids
Typical hybrid configurations include:
● Solar + Diesel
● Battery + Diesel
● Hydro + Diesel
● Hybrid Power Systems
In remote areas and weak-grid environments, high voltage diesel generators often serve not only as backup power sources but also as critical assets for grid stabilization, spinning reserve support, and peak load management.
These applications require advanced synchronization, load sharing, and power management capabilities.
Market Trends: Growing Demand for High Voltage Generator Sets
Although low voltage diesel generators will remain the dominant choice for most commercial and industrial applications, demand for high voltage generator sets continues to grow.
Several factors are driving this trend:
Expansion of Mining Projects
Mining operations require large amounts of power and often involve long transmission distances.
Growth of Data Centers
Large-scale data centers increasingly use medium voltage distribution systems to improve efficiency and reduce infrastructure costs.
Renewable Energy Integration
Hybrid energy projects require sophisticated power generation systems capable of supporting grid stability.
Industrial Electrification
Industrial parks and manufacturing facilities continue to expand their power requirements, making high voltage distribution more attractive.
Conclusion
Low voltage generators continue to dominate the global market, but demand for high voltage generator systems is growing rapidly in large industrial and infrastructure projects.
By understanding the differences between low voltage and high voltage solutions, project owners can select the most efficient and cost-effective power system for their application.
Voltgentprovides customized diesel generator solutions from 400V low voltage systems to 13.8kV high voltage power plants, supporting mining, data center, industrial, and hybrid energy projects worldwide.
FAQ
What is the difference between a low voltage and high voltage diesel generator?
Low voltage generators typically operate between 400V and 480V, while high voltage generators usually operate between 6.3kV and 15kV. High voltage systems are better suited for large-scale industrial applications and long-distance power transmission.
Why are high voltage diesel generators used in mining projects?
High voltage generators reduce transmission losses, allow smaller cable sizes, and provide more efficient power delivery over long distances commonly found in mining operations.
What voltage is commonly used for industrial generator systems?
Common industrial generator voltages include 400V, 480V, 6.3kV, 11kV, and 13.8kV, depending on project requirements and local electrical standards.
Can high voltage generators be integrated with solar and battery systems?
Yes. High voltage diesel generators are widely used in hybrid power systems that combine solar energy, battery storage, and conventional power generation.
