In agriculture irrigation, municipal drainage, construction sites, and emergency flood control, water pumps often rely on diesel generators as a primary or backup power source. Selecting the right generator not only ensures the stable operation of your water pump, but also improves project efficiency and reliability. Whether you are using a submersible pump, surface pump, centrifugal pump, or sewage pump, a generator that is too small can struggle during startup, while an oversized generator may lead to inefficiency and higher costs. This guide will explain the key factors in choosing a water pump generator and provide a simple method to calculate the correct generator capacity.
Why Oversizing Your Water Pump Generator is Recommended
One of the most important factors is that water pumps require more power at startup. Electric motors often draw 2–3 times their rated power during startup, known as inrush current.
Example:
A 4.5 kW single-phase water pump may require: 4.5 kW × 3 = 13.5 kW
This means that even though the pump only needs 4.5 kW during normal operation, your diesel generator for the water pump must supply at least 6.6 kW to handle the startup surge.

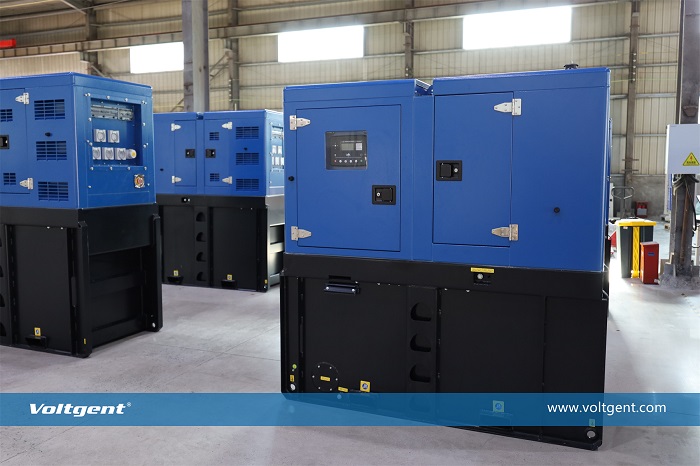

Rather than matching only the startup power, it is better to choose a generator with slightly higher capacity for safety and durability. For instance, a 15 kW generator is ideal for a 4.5 kW water pump.
Benefits of oversizing your water pump generator:
Prevents overload during pump startup.
Ensures long-term reliability and stable operation.
Reduces voltage drops that could damage the water pump.
Water Pump Generator Startup Best Practices
To protect your generator and pump:
Start the water pump first before connecting other electrical loads.
Allow the generator to stabilize after startup.
Gradually add additional loads, such as lighting or small devices.
Following these steps reduces stress on the generator and ensures all connected equipment receives stable and safe power.
Other Considerations When Choosing a Water Pump Generator

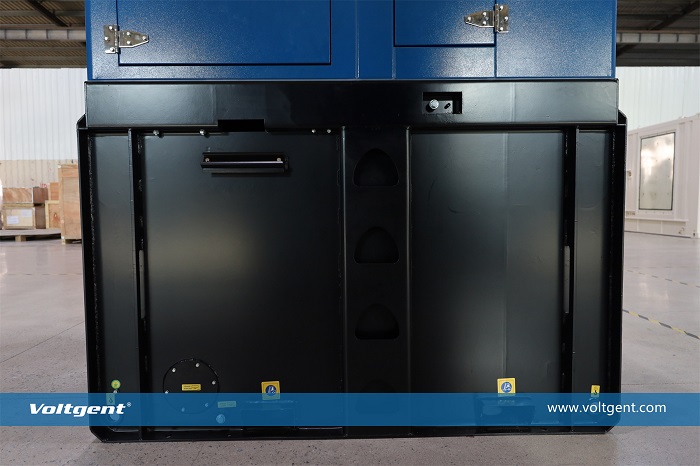

Long Continuous Operation – Large Fuel Tank
For agricultural irrigation or emergency drainage, a large fuel tank ensures long operating hours without frequent refueling, improving efficiency and reliability.

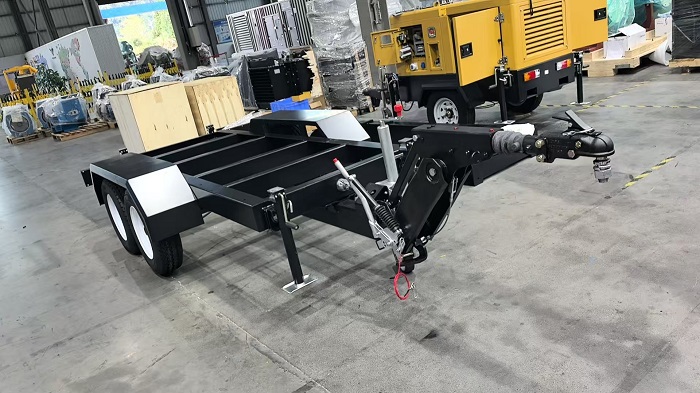

Frequent Mobility – Trailer-Mounted Generators
For construction projects or temporary drainage tasks, trailer-mounted generators are easy to transport, deploy, and set up on-site, saving time and reducing labor.

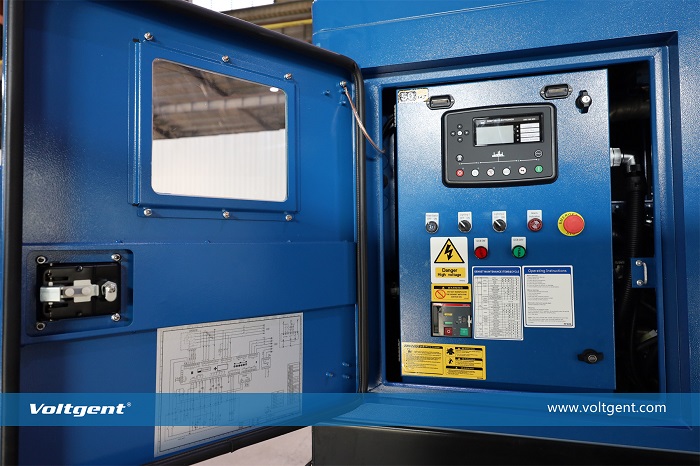

Remote Monitoring – Save Labor Costs
For remote or unmanned pumping stations, a remote control module allows operators to manage and monitor the generator from afar. Real-time data includes power output, voltage, current, fuel level, and temperature, helping detect issues early and improving operational efficiency.

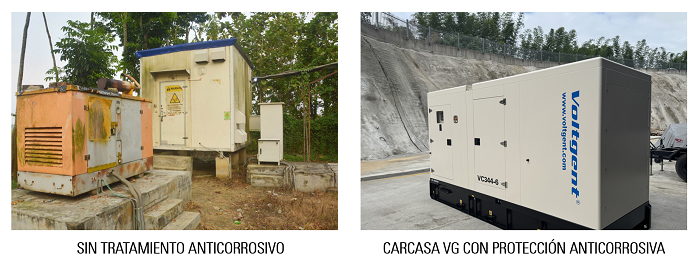

Corrosion Protection
In humid, rainy, or water-adjacent environments, generators are prone to corrosion. Applying anti-corrosion treatment extends service life, ensures long-term stable operation, and reduces maintenance costs.
Voltgent Water Pump Generator Solutions
Looking for a reliable diesel generator for water pumps? Voltgent provides professional water pump generator solutions, delivering stable and efficient backup power for water pumps and reliable emergency power support for agricultural irrigation, municipal water systems, and construction projects.
Contact us today to find the ideal diesel generator for your water pump project: info@voltgent.com
